GardenWiz CS-5801 Chain Saw

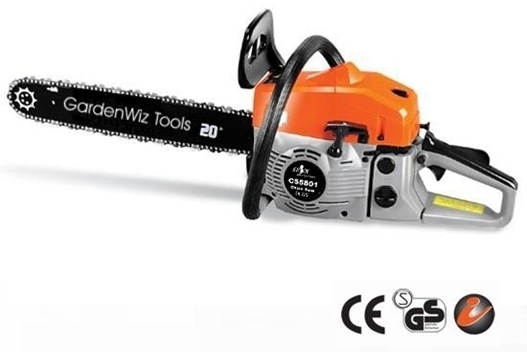

The GardenWiz CS-5801 20" Chain Saw is easy to start and can handle most cutting jobs

(Product images illustrative only – Actual product appearance may vary slightly due to continuous process improvements in manufacturing)

Engine: Single, twice-air scavenging cylinder – 2-stroke, air-cooled
Cylinder diameter x stroke: 43mm x 31mm
Compression Ratio: 7.5:1 Displacement: 58cc Max. Power: 2.5Kw/ 7,500 rpm
Max. Speed: (With cutting attachment) 10,000 rpm
Engine Speed: (At idling) 2,800 rpm
Fuel Use: 2-cycle oil/ petrol mixing ratio – 1:25
Oil Feeding System: Automatic pump with adjuster
Fuel Tank Capacity: 550ml Oil Tank Capacity: 260ml
Ignition: CDI Start System: Recoil Chain Oil: Motor oil SAE#10W-30
Chain Saw Type: Tiger/ Oregon Guide Bar Type: Sprocket Nose
Max. Cutting Length: 50cm Guide Bar Sizes: 18in/ 20in
Chain Saw Pitch: 0.325/ 0.375in Sprocket: 7T x 0.325
Chain Saw Gauge: 0.058/ 0.063in Gross Weight (with 20” guide bar): 8.2kg
All GardenWiz Tools come with a pre-delivery check
and a 1 Year Warranty
Local Service and Repairs/ Spare Parts

Download Product Sheet for CS-5801
